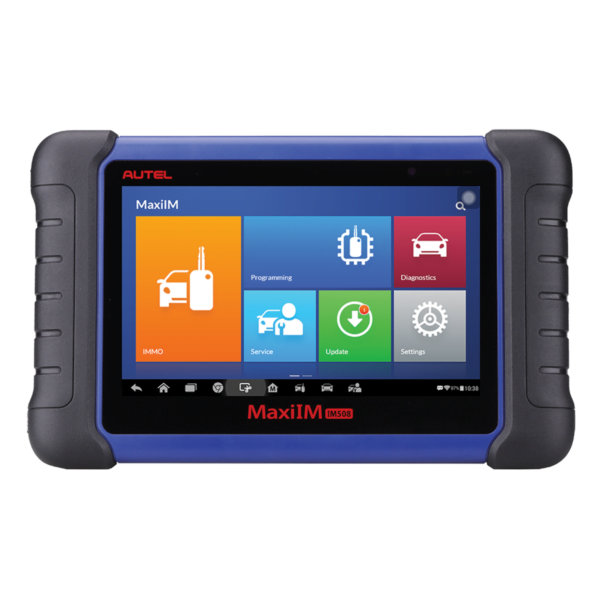

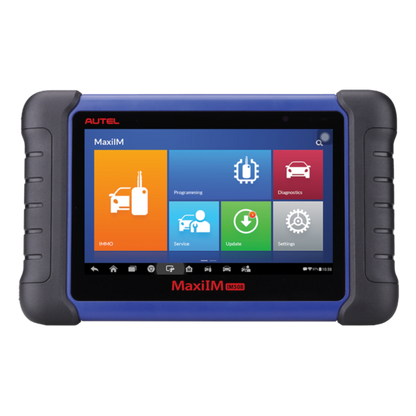

Autel MaxiIM IM508

The Autel MaxiIM IM508 is a high-performance automotive diagnostic and key programming tool designed for professional automotive technicians and locksmiths. It combines advanced diagnostic functions, key programming capabilities, and ECU adaptation, providing an all-in-one solution for key and ECU-related tasks. The IM508 comes with 2 years of free software updates, ensuring access to the latest vehicle models and diagnostic functions. After the initial two years, 50% off software updates are available if purchased from ADK Tools, making it a cost-effective tool for the long term.

Key Features:

• Key Programming Functions:

  • Smart Mode: Automated, step-by-step key learning for beginners and quick processes.
  • Expert Mode: Advanced, manual key programming for experienced technicians.
  • Key Generation and Learning: Supports key generation, key learning, and remote key programming.
  • PIN/CS Reading: Supports all-key-lost scenarios with PIN and CS code retrieval for reprogramming.
  • IMMO ECU Reset/Adaptation: Reset and adapt ECU and immobilizer systems, allowing new keys or modules to be programmed.
  • Transponder Read/Write: Support for reading and writing transponder data for key programming tasks.
  • EEPROM/MCU Read/Write: Read and write data from EEPROM chips and MCUs for key programming and ECU work.

• Advanced Diagnostics:

  • Full-System Diagnostics: Offers comprehensive diagnostics for over 80 U.S., Asian, and European vehicle brands, covering all major systems (engine, transmission, ABS, SRS, HVAC, TPMS, etc.).
  • Live Data & Bi-Directional Control: Provides real-time data streaming and allows bi-directional control of vehicle components for in-depth diagnostic testing and verification.
  • OE-Level Functions: Includes diagnostic capabilities equal to those available from the Original Equipment Manufacturer (OEM) for accurate and precise vehicle diagnostics.

• Specialized Functions:

  • Oil Reset, EPB Reset, DPF Regeneration: Specialized services for common maintenance tasks, such as oil change resets, parking brake adjustments, and diesel particulate filter regeneration.
  • SAS Calibration: Steering Angle Sensor calibration for proper alignment after repairs.
  • TPMS Reset: Reset Tire Pressure Monitoring Systems (TPMS) for vehicle safety.
  • Injector Coding & Throttle Adaptation: Program injectors and adapt the throttle system to ensure proper vehicle performance.

• Cloud Storage & Reports: Store diagnostic reports and maintenance records in the cloud, ensuring that data is easily accessible from anywhere, anytime.

Specifications:

• Operating System: Android 10
• Processor: Qualcomm SDM660 Octa-core Processor (2.2GHz)
• Memory:
  • RAM: 4GB
  • Storage: 64GB onboard storage (expandable via microSD)
• Display: 7-inch LED capacitive touchscreen with 1280 x 800 resolution for clear visuals during diagnostics and key programming.
• Connectivity:
  • Wi-Fi: 802.11 a/b/g/n/ac
  • Bluetooth: Bluetooth v4.0 for wireless connectivity with external devices
  • USB: 2.0 for direct connection to vehicles or accessories
  • HDMI: Output for connecting to external displays
• Sensors: Ambient light sensor for automatic screen brightness adjustment
• Power:
  • Battery: 7,000 mAh lithium-ion battery for extended use
  • Charging: 12V AC/DC power supply
  • Power Consumption: 10W
• Temperature Range:
  • Operating Temp.: 0°C to 50°C (32°F to 122°F)
  • Storage Temp.: -20°C to 60°C (-4°F to 140°F)
• Dimensions: 247 mm (9.72") x 160 mm (6.30") x 30 mm (1.18")
• Weight: 1.1 kg (2.43 lbs)

Supported Automotive Protocols:

• ISO 9142-2, ISO 14230-2, ISO 15765-4, SAE J1850 VPW, SAE J1850 PWM
• CAN ISO 11898 (High-speed, Mid-speed, Low-speed)
• K-Line, L-Line, GM UART, Honda Diag-H, SAE J1939, and other industry-standard protocols.

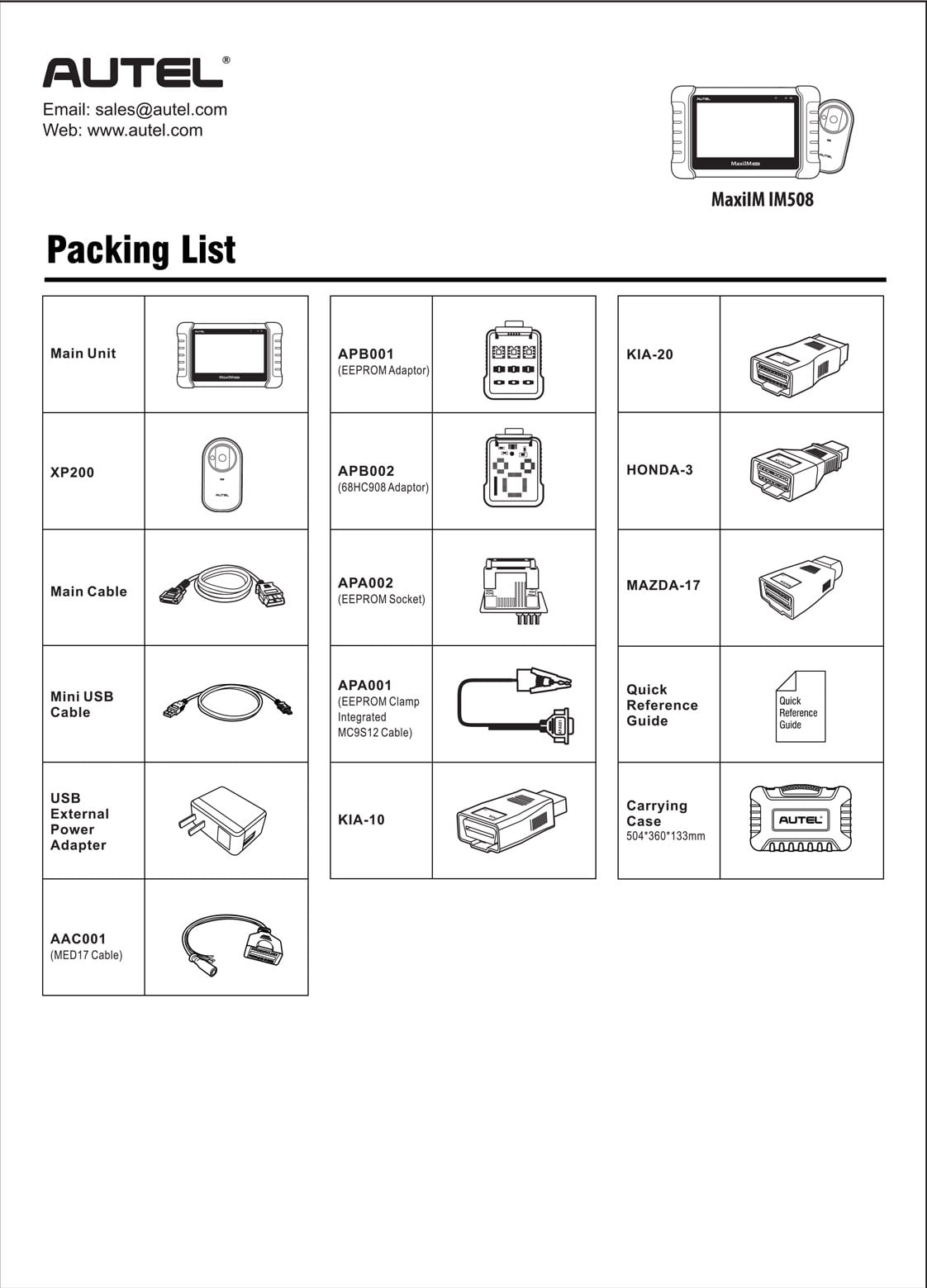

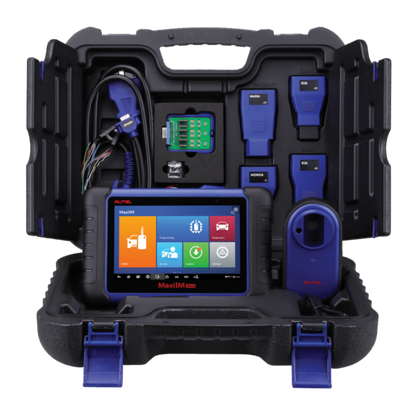

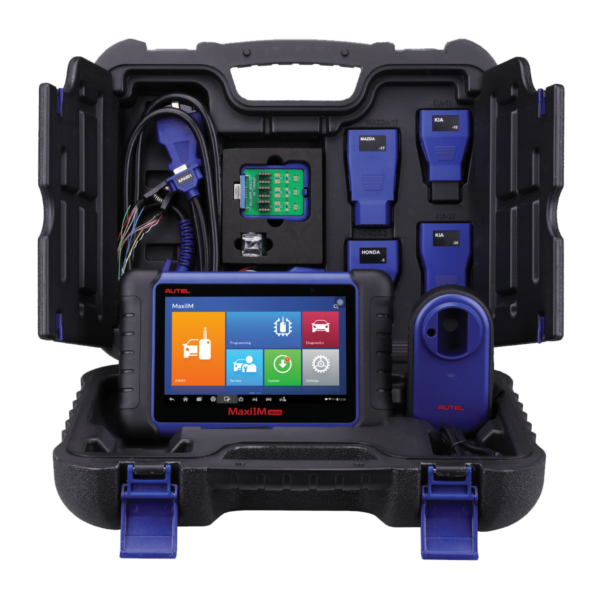

Package Contents:

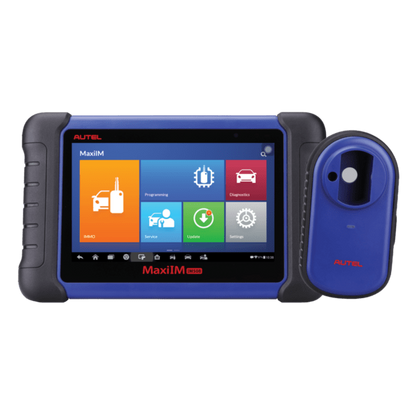

• MaxiIM IM508 Main Unit
• MaxiFlash JVCI (Vehicle communication interface)

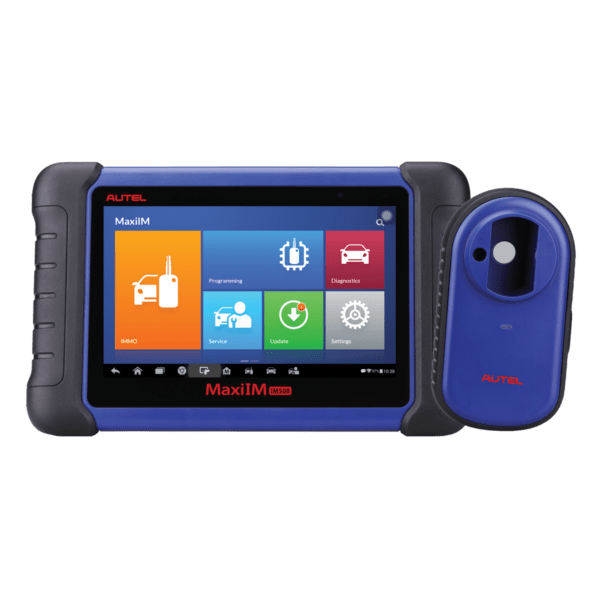

• XP200 Key Programming Adapter
• OBDII Cable
• USB Cable
• AC/DC Adapter
• Quick Start Guide
• Carrying Case

Why Choose the Autel MaxiIM IM508?

The AutelMaxiIM IM508 offers a versatile and robust solution for professional automotive service centers, combining advanced diagnostics with powerful key programming capabilities. With a Qualcomm Octa-core processor and a 7-inch high-definition touchscreen, it provides fast, accurate diagnostics, allowing you to perform complex operations such as PIN/CS reading, transponder programming, and ECU adaptation with ease.

Its comprehensive vehicle coverage of over 80 vehicle brands, combined with live data and bi-directional control, gives you the ability to perform in-depth diagnostics on all vehicle systems. The cloud storage feature ensures that all diagnostic and service records are easily accessible, providing seamless workflow management for busy shops.

Whether you're performing basic diagnostics, advanced ECU programming, or specialized services like key cloning, oil resets, or DPF regeneration, the Autel IM508 is a powerful tool that ensures you stay ahead in the fast-paced world of automotive repair and key programming.
