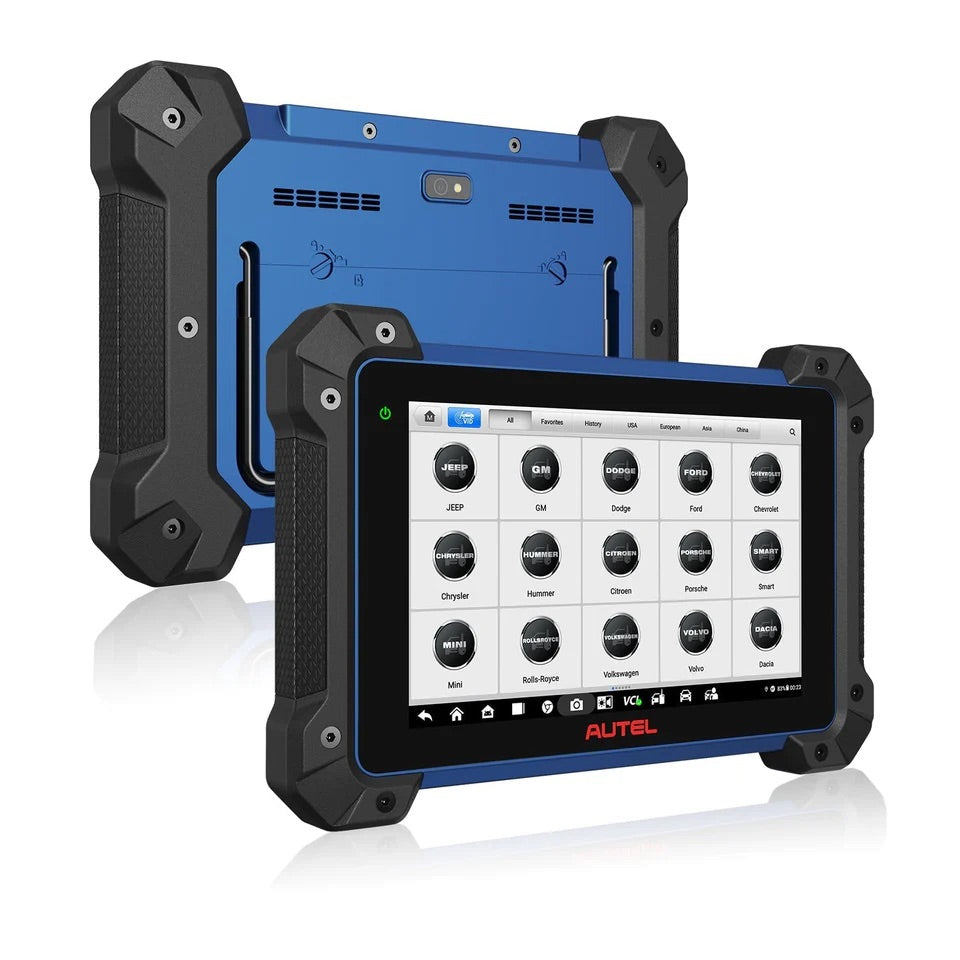

Autel MaxiIM IM608 Pro II

The Autel MaxiIM IM608 is a high-performance automotive diagnostic tool and advanced key programming device tailored for professional automotive technicians, locksmiths, and service centers. This device integrates comprehensive vehicle diagnostics, key learning, ECU programming, and more, providing a one-stop solution for all key and ECU-related tasks. T

The IM608 includes 2 years of free software updates, ensuring you always have the latest vehicle coverage and functions. After 2 years, enjoy 50% off software updates if purchased from ADK Tools, ensuring long-term savings and up-to-date functionality.

Key Features:

• Smart Mode: Automated, step-by-step key programming, ideal for beginner users or quick operations.
• Expert Mode: Manual, advanced key programming mode for experienced technicians requiring full control over the key programming process.
• Key Functions:
  • Read PIN/CS (all keys lost scenario)
  • Key Generation for new keys
  • Key Learning (including both transponder and remote key programming)
  • Remote Learning for additional key fobs
• IMMO ECU Reset/Adaptation: Reset and adapt vehicle ECU/immobilizer systems to restore factory settings and program new keys or modules.
• Transponder Read/Write: Advanced support for reading and writing transponder data for key programming.
• EEPROM/MCU Read/Write: Ability to read and write data from EEPROM chips and MCUs for specialized key and ECU tasks.
• ECU Programming and Coding: Advanced functions like ECU reset, coding, adaptation, and software programming for multiple vehicle brands.
• Live Data & Bi-Directional Control: Real-time data streaming from vehicle sensors and systems. Perform active tests to control vehicle components for diagnostic verification.
• OE-Level Diagnostics: Full diagnostics for all available systems on more than 80 vehicle brands, including engine, transmission, ABS, SRS, HVAC, TPMS, and more.
• Maintenance & Service Functions:
  • EPB (Electronic Parking Brake) Reset
  • DPF (Diesel Particulate Filter) Regeneration
  • SAS (Steering Angle Sensor) Calibration
  • Oil Reset & BMS (Battery Management System) Reset
  • TPMS (Tire Pressure Monitoring System) Reset
  • Injector Coding, Throttle Adaptation, Gear Learning, etc.
• Cloud-Based Reports: Store and access diagnostic and maintenance reports securely in the cloud, allowing access from anywhere at any time.
• Wi-Fi & Bluetooth Connectivity: Provides remote diagnostics and enables quick software updates without the need for cables.

Specifications:

• Operating System: Android 10
• Processor: Qualcomm SDM660 Octa-core Processor (2.2GHz)
• Memory:
  • RAM: 4GB
  • Storage: 128GB on-board memory
• Display: 10.1-inch LED capacitive touchscreen with 1920 x 1200 resolution for clear, high-definition data visualization.
• Connectivity:
  • Wi-Fi: 802.11 a/b/g/n/ac for fast, stable internet access
  • USB: 2.0 for external device connection
  • Bluetooth: v2.1 + EDR for wireless communication with vehicles and accessories
  • SD Card Slot: Supports up to 64GB for additional data storage
  • HDMI Output: For connecting to external monitors
• Sensors: Ambient light sensor for automatic screen brightness adjustment
• Power:
  • Battery: 15,000mAh lithium-polymer battery (3.8V)
  • Charging: Via 12V AC/DC power supply
  • Input Voltage: 12V (operates within the range of 9V to 24V)
  • Power Consumption: 6.5W
• Temperature Range:
  • Operating Temp: 0 to 50°C (32 to 122°F)
  • Storage Temp: -20 to 60°C (-4 to 140°F)
• Dimensions: 300 mm (11.81") x 220 mm (8.66") x 50 mm (1.97")
• Weight: 1.58 kg (3.48 lbs)

Supported Automotive Protocols:

• ISO 9142-2, ISO 14230-2, ISO 15765-4
• SAE J1850 VPW, SAE J1850 PWM, CAN ISO 11898 (High-speed, Mid-speed, Low-speed)
• Single-wire CAN, GM UART, Honda Diag-H, TP 2.0, TP 1.6
• SAE J1939, SAE J1708, Fault-Tolerant CAN, and Flashing Code Protocols
• K-Line, L-Line, ISO 11898, OBD-II, and other custom protocols for specialized vehicles.

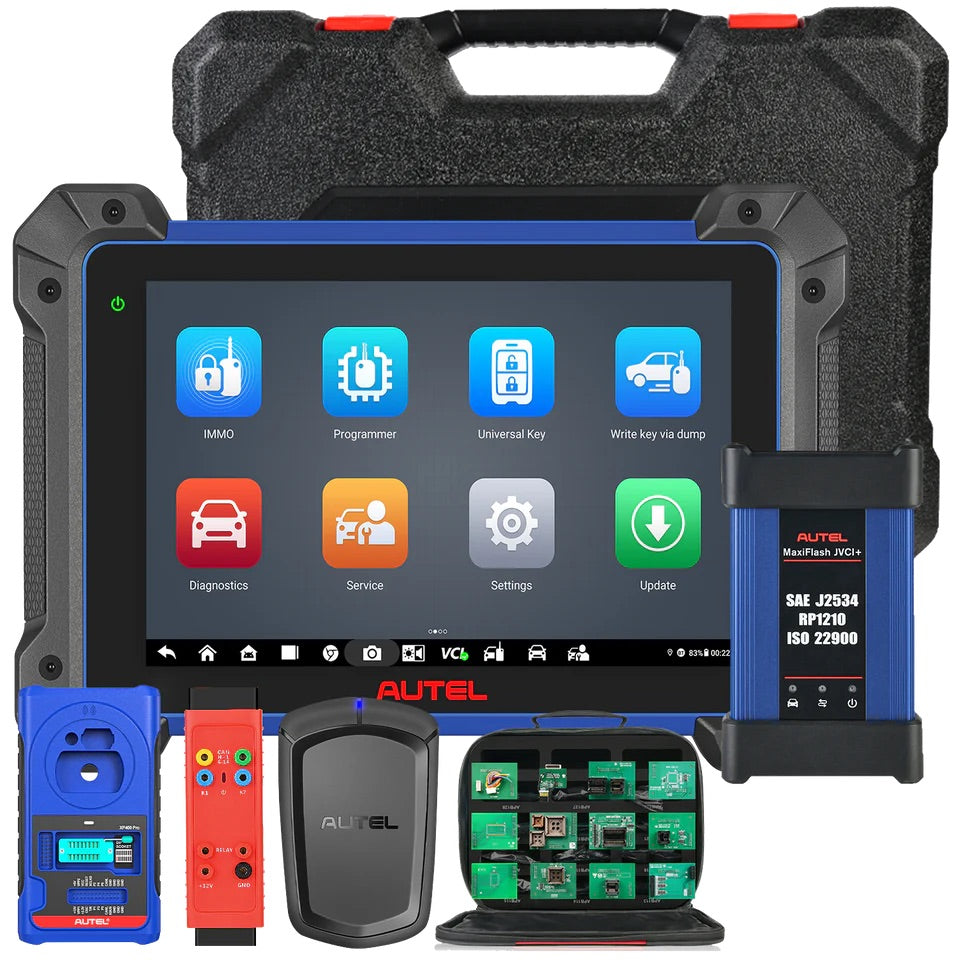

Package Contents:

• MaxiIM IM608S II Main Unit: The central diagnostic and key programming device.
• MaxiFlash JVCI+: Interface for vehicle communication.
• XP400 Pro: High-end key programming and chip reading tool.

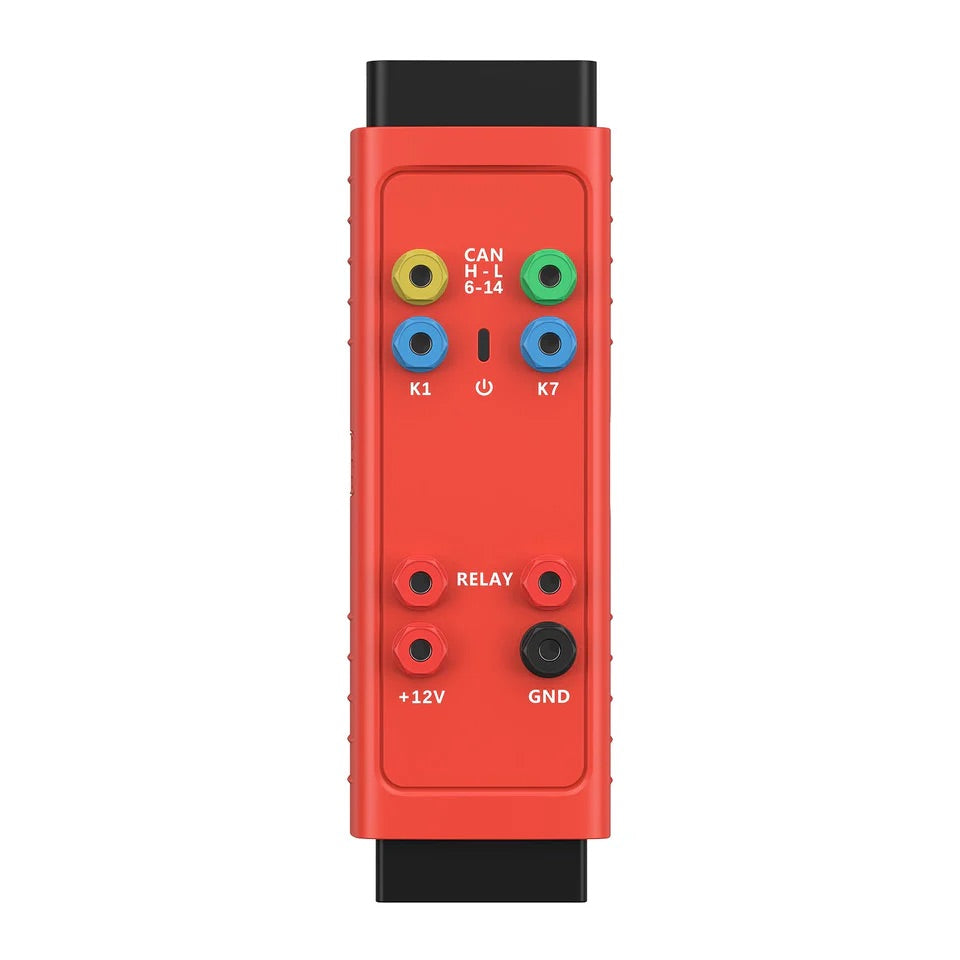

• G-BOX3: Adapter for reading encrypted keys.
• APB112: Adapter for reading and programming keys via transponder.
• IMKPA: Adapter for programming keys in advanced scenarios.
• Various Cables: Includes USB cables, mini USB cables, main connection cables, and more.
• AC/DC Adapter: For charging via a 12V power supply.
• Spare Fuses: 2 fuses (6x30mm).
• Power Outlet Adapter: Auxiliary power outlet adapter.
• Various MCU Adapters: Multiple MCU FQFP (64, 80, 112, 144, 176 pin) and EEPROM adapters for specialized ECU and key programming.
• Signal and ECU Cables: Cables for connecting to ECU and MCU for diagnostics.
• Carrying Case: For convenient and secure transport of the unit and accessories.

Why Choose the Autel MaxiIM IM608?

The Autel MaxiIM IM608 is built for professionals seeking a high-performance diagnostic tool that combines advanced key programming with complete system diagnostics. Equipped with a Qualcomm SDM660 octa-core processor and 4GB of RAM, this tool provides fast data processing, seamless multitasking, and an intuitive user interface. The 10.1-inch HD touchscreen provides high resolution for easy navigation and precise diagnostic readings, while the cloud-based storage enables you to access critical data and reports from anywhere.

The IM608 supports OE-level diagnostics and offers deep coverage of over 80 vehicle makes, from engine control modules to more complex systems like ABS, SRS, and HVAC. Its bi-directional control and live data streaming provide real-time vehicle status monitoring, ensuring efficient repairs and diagnostics. Moreover, with its advanced key programming capabilities, including PIN/CS reading, key generation, EEPROM/MCU read/write, and IMMO ECU resets, it can handle complex automotive tasks with ease.

The Autel MaxiIM IM608 is ideal for workshops that need a comprehensive tool to handle both diagnostic repairs and key programming with speed, accuracy, and reliability.
