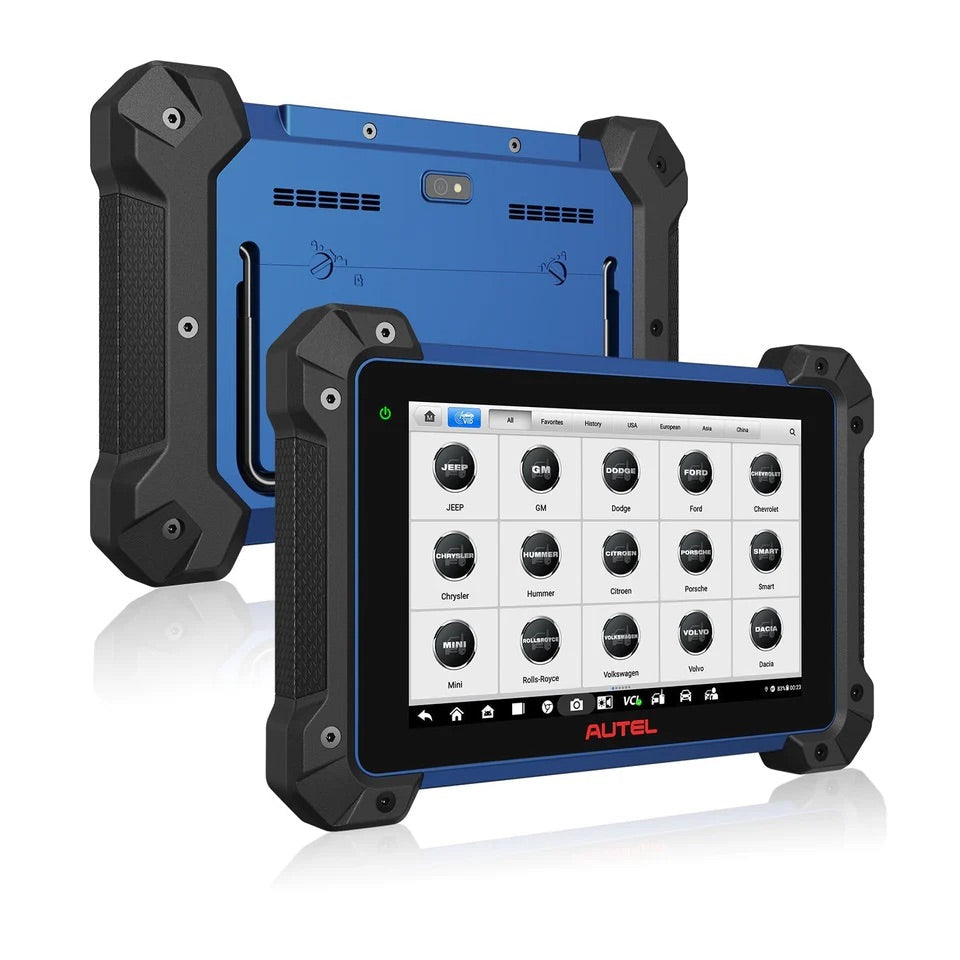

Autel MaxiCOM MK906 Pro

The Autel MaxiCOM MK906 Pro is a high-performance, all-in-one diagnostic tool designed for professional automotive technicians and repair shops. Combining advanced diagnostic capabilities, extensive vehicle coverage, and powerful ECU programming functions, the MK906 Pro delivers OE-level diagnostics for over 80 U.S., Asian, and European vehicle makes. It supports advanced key programming, ECU coding, adaptation, and service reset functions to ensure accurate and reliable vehicle repairs.

Built on a powerful Android operating system and featuring a large touchscreen display, the MK906 Pro provides fast, efficient, and user-friendly diagnostic services. It also includes 2 years of free software updates, with 50% off software renewals available after the first two years when purchased through ADK Tools, ensuring you stay up-to-date with the latest vehicle models and diagnostic functions.

Key Features:

• Comprehensive Full-System Diagnostics: The MK906 Pro offers diagnostics for over 80 U.S., Asian, and European vehicles, covering all vehicle systems, including engine, transmission, ABS, SRS, HVAC, TPMS, body control, and more. It provides detailed fault code reading, live data streaming, and component testing.

• ECU Coding & Adaptation: The tool supports ECU programming, coding, and adaptations for modules such as engine, transmission, ABS, airbag, and more. It allows you to reprogram modules and restore factory settings for optimal vehicle performance.

• Key Programming: The MK906 Pro allows advanced key programming functions such as key learning, remote key programming, and PIN/CS code reading, enabling you to handle all key-related issues with ease.

• Service Reset Functions: Perform essential vehicle maintenance resets, including oil reset, TPMS reset, DPF regeneration, EPB reset, SAS calibration, throttle adaptation, and more.

• Active Test & Bi-Directional Control: Send commands to various vehicle components for active testing, such as turning lights on/off, controlling windows, checking relay functionality, and more. This feature allows you to verify component functionality and ensure proper operation.

• Live Data Streaming & Graphing: View live data from various sensors in real-time, with graphing capabilities to identify trends and anomalies in vehicle performance.

• Auto VIN Detection: Automatically detects and decodes the vehicle’s VIN, simplifying the process of vehicle identification for quicker diagnostics and ECU programming.

• Wireless Connectivity & Cloud Data Storage: Built-in Wi-Fi allows for software updates, online data access, and cloud storage of diagnostic reports for easy sharing and record-keeping.

• User-Friendly Interface: The 10.1-inch high-resolution touchscreen provides a clear and responsive interface, making it easy for technicians to navigate through diagnostics and programming tasks.

Specifications:

• Operating System: Android 10
• Processor: Qualcomm Snapdragon Octa-core Processor (2.2 GHz)
• Memory:
  • RAM: 4GB
  • Storage: 64GB of internal storage (expandable with microSD card)
• Display: 10.1-inch LED capacitive touchscreen with 1920 x 1200 resolution for clear, sharp graphics and diagnostics.
• Connectivity:
  • Wi-Fi: 802.11 a/b/g/n/ac for fast internet and cloud storage.
  • Bluetooth: V4.0 for wireless communication with vehicle communication interfaces.
  • USB: 2.0 for wired connections to external devices.
  • HDMI: Output for connecting to external displays or projectors.
• Power:
  • Battery: 10,000 mAh lithium-polymer battery for extended use.
  • Charging: 12V DC power supply (included) for vehicle-based charging.
  • Power Consumption: 18W
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Dimensions: 286 mm (11.26”) x 192 mm (7.56”) x 33 mm (1.30”)
• Weight: 1.8 kg (3.97 lbs)

Supported Automotive Protocols:

• ISO 9141-2, ISO 14230-4 (KWP2000), ISO 15765-4 (CAN), J1850 VPW, J1850 PWM, SAE J1939, SAE J1708, K-Line, L-Line, TP2.0, TP1.6, SAE J2513, and more.

Package Contents:

• MaxiCOM MK906 Pro Main Unit
• MaxiVCI VCI (Vehicle Communication Interface)
• OBDII Cable
• USB Cable
• AC/DC Adapter
• Quick Start Guide
• Carrying Case

Why Choose the Autel MaxiCOM MK906 Pro?

The Autel MaxiCOM MK906 Pro is an all-in-one diagnostic tool designed for professional automotive technicians who require fast, accurate, and comprehensive vehicle diagnostics and ECU programming capabilities. With a powerful Snapdragon octa-core processor, 10.1-inch high-resolution touchscreen, and extensive vehicle coverage, the MK906 Pro enables you to perform a wide range of diagnostic and programming tasks quickly and efficiently.

Whether you need to perform ECU coding, advanced key programming, or service resets, the MK906 Pro provides everything you need to stay ahead of the competition. The bi-directional control feature offers additional functionality to test and activate components for a thorough diagnostic process.
