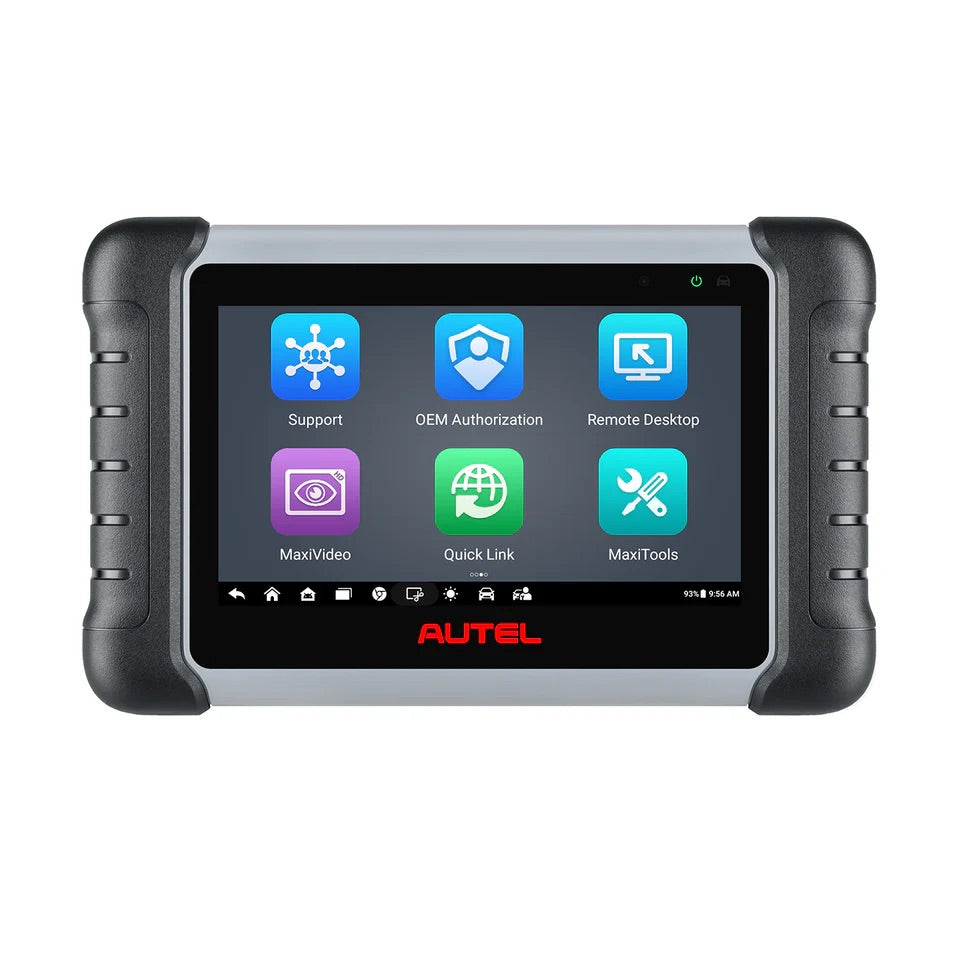

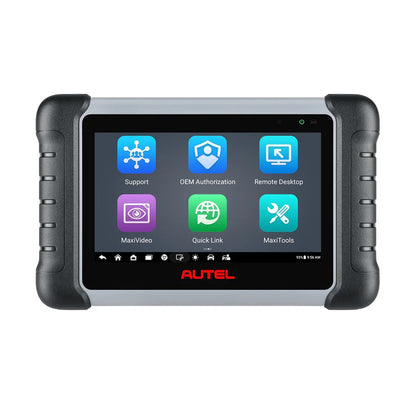

Autel MaxiPRO MP808 MP808S

The Autel MaxiPRO MP808 and MP808S are highly efficient and versatile automotive diagnostic tools designed for professional automotive technicians and repair shops.

Both models deliver OE-level diagnostics for over 80 U.S., Asian, and European vehicle makes, offering access to all available vehicle systems and advanced service functions.

With a fast Qualcomm processor, large touchscreen display, and a user-friendly Android operating system, these devices allow technicians to quickly and easily access comprehensive diagnostic features, perform service resets, and carry out active tests.

The MP808S comes with additional bi-directional control capabilities and expanded vehicle coverage compared to the MP808, making it ideal for a wider range of professional automotive repair applications.

Both tools come with 2 years of free software updates and after that period, 50% off software updates if purchased from ADK Tools, ensuring ongoing access to the latest vehicle coverage and diagnostic functions.

Key Features:

• Comprehensive Diagnostics: Provides diagnostics for over 80 vehicle brands, covering all major vehicle systems, including engine, transmission, ABS, SRS, HVAC, TPMS, body control modules, and more.
• Active Test / Bi-Directional Control (MP808S only): Allows technicians to perform active tests on vehicle components such as actuators, relays, sensors, and valves to ensure proper operation.
• Service Reset Functions: Perform a wide range of essential resets, including oil reset, TPMS reset, DPF regeneration, EPB reset, SAS calibration, throttle adaptation, and more.
• OE-Level Functions: Access advanced diagnostic functions equivalent to those found at the OEM level for more accurate and detailed diagnostics.
• Live Data Streaming: View real-time sensor data and live vehicle information with the ability to graph and record data for enhanced diagnostics.
• Auto VIN Detection: Automatically detects and decodes vehicle information by scanning the VIN (Vehicle Identification Number), allowing quick identification of vehicle models and ECU information.
• Diagnostic Report Sharing: Save diagnostic reports and share them with customers or team members directly from the tool, improving workflow efficiency.
• Cloud Data Management: Store and access diagnostic reports and data in the cloud for easy sharing, backup, and access from anywhere.

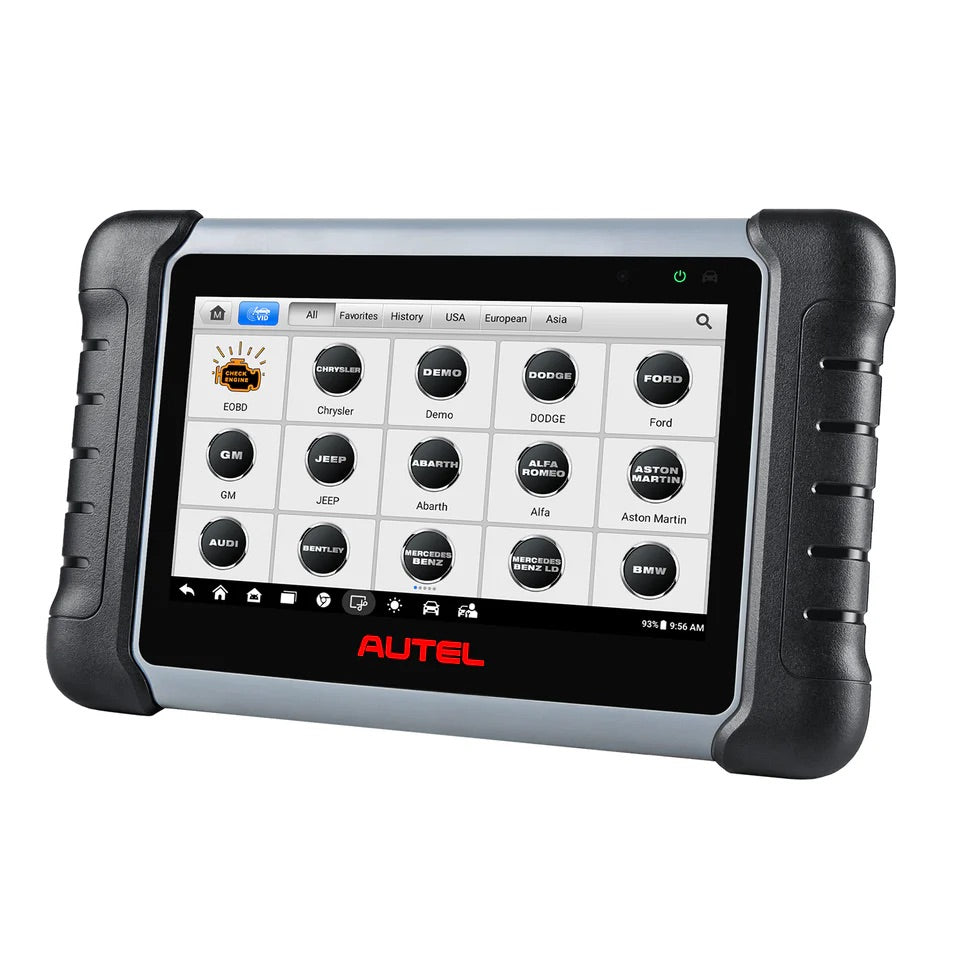

• Touchscreen Interface: The 7-inch touchscreen provides easy navigation and clear visibility during diagnostics, with a high-resolution display for accurate readings.

Specifications:

• Operating System: Android 4.4 (KitKat)
• Processor: Qualcomm Snapdragon Quad-core processor for fast and efficient processing.
• Memory:
  • RAM: 2GB
  • Storage: 32GB of internal storage (expandable via microSD)
• Display: 7-inch color touchscreen with 1024 x 600 resolution for clear, crisp data and graphics.
• Connectivity:
  • Wi-Fi: 802.11 a/b/g/n for fast internet and cloud data access.
  • Bluetooth: Bluetooth v4.0 for wireless vehicle communication.
  • USB: 2.0 for wired connection to the vehicle and accessories.
  • HDMI: Output for connecting to external displays or projectors.
• Power:
  • Battery: Rechargeable 7,000 mAh lithium-polymer battery for extended usage.
  • Charging: 12V DC power supply (included) for charging via vehicle.
  • Power Consumption: 10W
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Dimensions: 245 mm (9.65”) x 180 mm (7.09”) x 32 mm (1.26”)
• Weight: 0.9 kg (1.98 lbs)

Supported Automotive Protocols:

• ISO 9141-2, ISO 14230-4 (KWP2000), ISO 15765-4 (CAN), J1850 VPW, J1850 PWM, SAE J1939, SAE J1708, K-Line, L-Line, TP2.0, TP1.6, SAE J2513, and more.

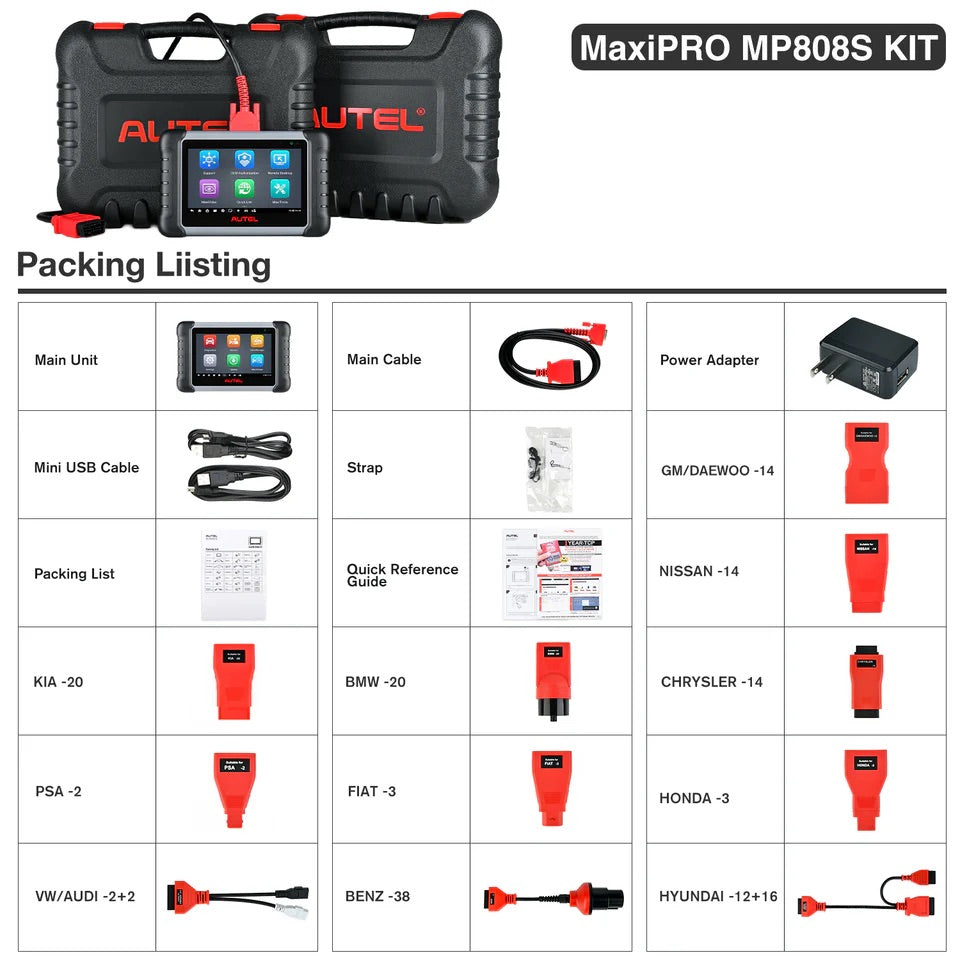

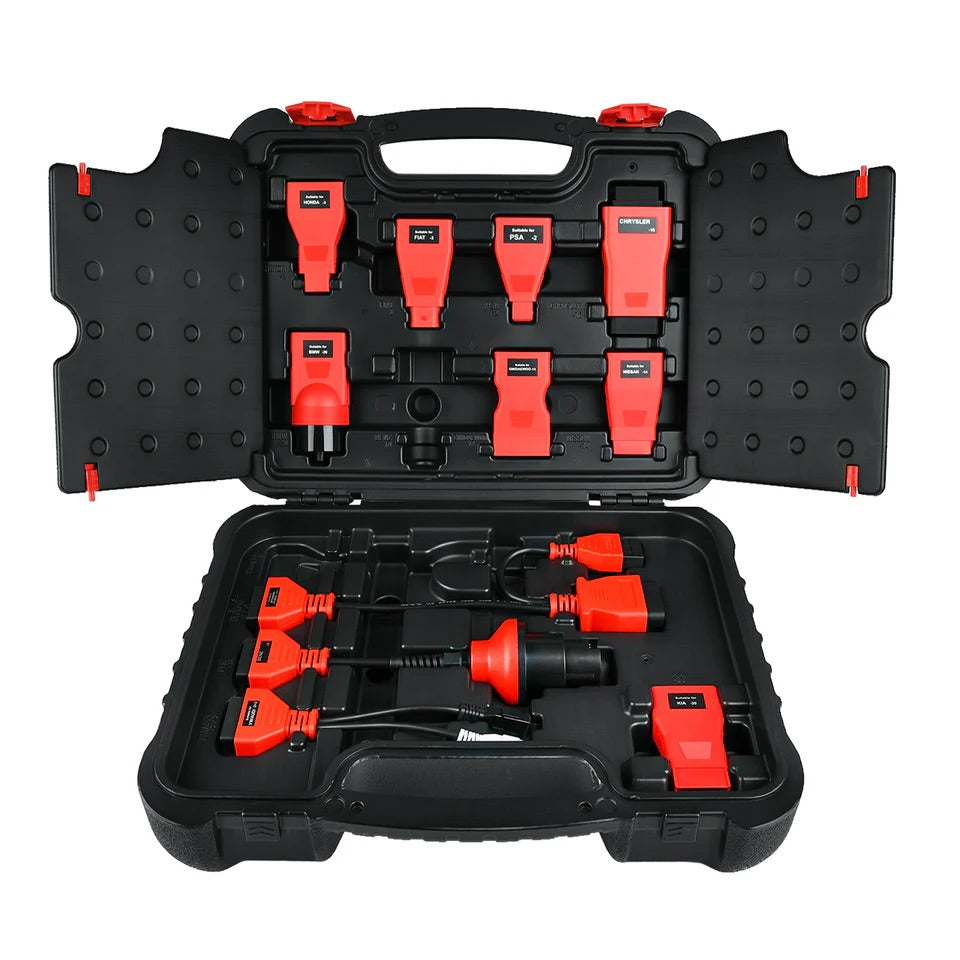

Package Contents:

• MaxiPRO MP808 / MP808S Main Unit
• OBDII Cable
• USB Cable
• AC/DC Adapter
• Quick Start Guide
• Carrying Case

Why Choose the Autel MaxiPRO MP808 / MP808S?

The Autel MaxiPRO MP808 and MP808S are powerful, cost-effective diagnostic tools ideal for automotive technicians who need fast, reliable diagnostics for a wide range of vehicles. These devices are equipped with comprehensive diagnostic functions, real-time live data streaming, and an intuitive, easy-to-use interface.

The MP808S stands out with added bi-directional control, allowing you to perform more advanced tests, making it suitable for professionals looking for even deeper diagnostic capabilities. Whether you're performing a basic check-up or tackling complex systems in modern vehicles, the Autel MP808 series provides all the essential tools you need to increase productivity and reduce downtime in your service shop.
